Construction Hydraulic Telescopic Boom Crane Narrow Articulating Boom Lift

Product Categories

SINO VEHICLE & EQUIPMENT COMPANY LTD

Contact Now

Name: Construction Hydraulic Telescopic Boom Crane Narrow Articulating Boom Lift
Brand: CIVL
Price: 1 USD

Brand Name : CIVL

Model Number : GTBZ30S

Certification : ISO,CCC

Place of Origin : China

MOQ : 1

Payment Terms : L/C, T/T

Supply Ability : 10000 Unit/Units per Month

Delivery Time : Within 35 days

Packaging Details : In nude

Type : Telescoping Lift

Rated Loading Capacity : 340kg/480kg

Power : 55.5kw

Table Size : 2400mm*900mm

Contact Now

XCMG GTBZ30S cheap hydraulic telescopic boom lift aerial work platform price for sale China

Construction Hydraulic Telescopic Boom Crane Narrow Articulating Boom Lift

Project	Unit	Parameters
a Full length of machine	mm	13380
b Full width of machine (shaft retraction / shaft extension)	mm	2490/3800
c Full height of machine	mm	3070
d Wheelbase	mm	3800
Maximum operation height	m	32.2
Maximum platform height	m	30.5
Maximum operation margin	m	23.1
Maximum bearing weight	kg	340 (unlimited) / 480 (limited)
Boom variable amplitude range	°	-11~+75
Rotary table rotation angle	°	360°
Maximum tail pendulum (shaft retraction / shaft extension)	mm	2085/1430
Platform size	mm	2400×900
Platform rotation angle	°	180
Total weight	kg	18300
Maximum driving speed	km/h	5
Minimum turning radius (shaft retraction / shaft extension)	m	8.2 / 10.8 (two turns) 5.8 / 6.8 (four turns)
Minimum ground clearance	mm	260
Maximum climbing ability	%	45
Tire specification	-	385/65D22.5
Engine model	-	Perkins 1104D-44T
Engine rated power	kW/(r/min)	55.5/2400

Construction Hydraulic Telescopic Boom Crane Narrow Articulating Boom Lift

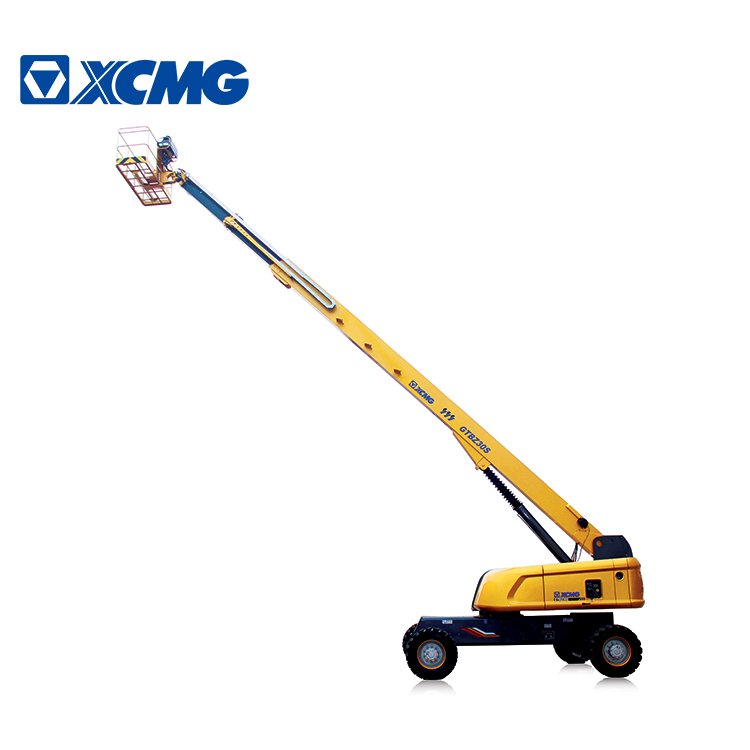

Below Picture for you reference

Construction Hydraulic Telescopic Boom Crane Narrow Articulating Boom Lift
